Product Introduction

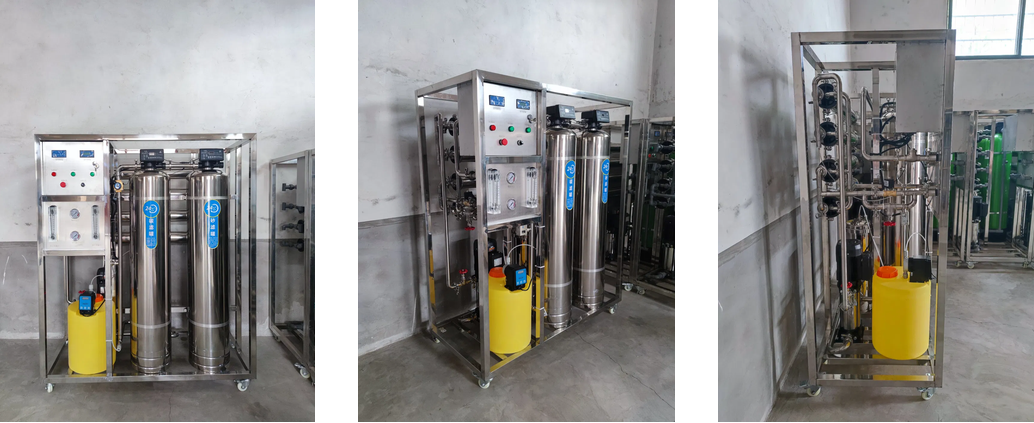

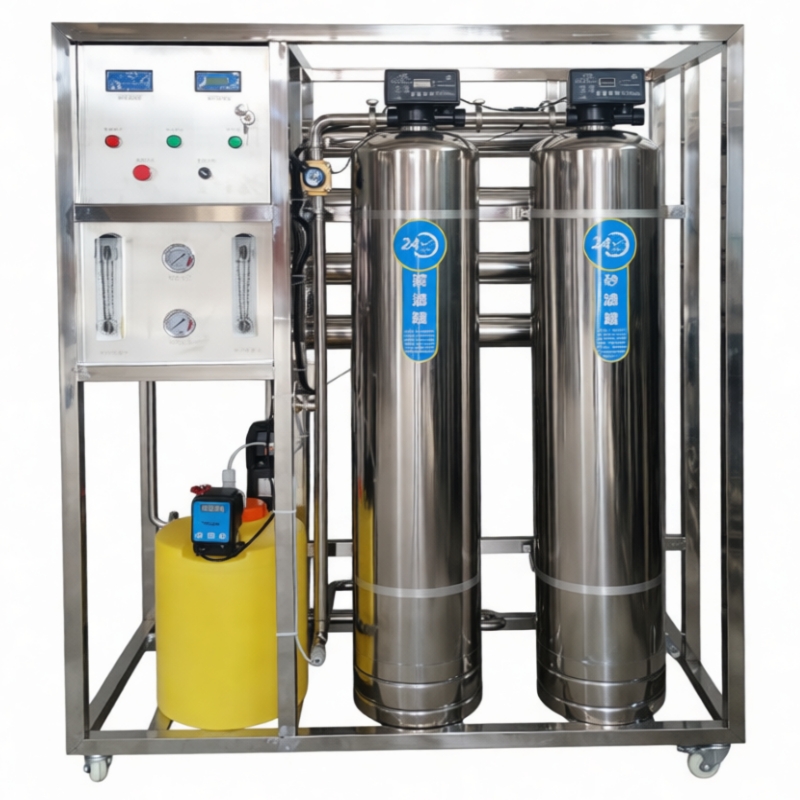

1TPH Industrial Reverse Osmosis System for Boiler Feed Water Treatment

The 1TPH Industrial Reverse Osmosis (RO) Water Treatment System is designed to produce high-quality purified water for industrial applications, especially boiler feed water treatment. The system effectively removes dissolved salts, hardness, bacteria, organic matter, heavy metals, and suspended particles from raw water, ensuring stable boiler operation while reducing scale formation and maintenance costs.

This industrial RO plant adopts a multi-stage purification process, including a quartz sand filter, activated carbon filter, precision filter, high-pressure pump, and high-performance reverse osmosis membranes. The complete filtration process provides a salt rejection rate of up to 99%, producing clean and reliable water suitable for demanding industrial environments.

The equipment features a compact design, automatic PLC control, low operating cost, and easy maintenance. It supports continuous operation and can be customized according to different raw water qualities, including tap water, underground water, river water, or well water.

Main Features

• Production Capacity: 1,000 Liters per Hour (1TPH)

• High desalination rate up to 99%

• Multi-stage pretreatment system

• High-efficiency RO membrane technology

• Automatic PLC control system

• Low energy consumption

• Stable continuous operation

• Easy installation and maintenance

• Durable stainless steel or carbon steel frame (optional)

• Custom voltage (220V / 380V / 415V / 440V)

Standard Treatment Process

Raw Water Tank

↓

Raw Water Pump

↓

Quartz Sand Filter

↓

Activated Carbon Filter

↓

Precision Filter

↓

High Pressure Pump

↓

Reverse Osmosis Membrane

↓

Pure Water Tank

Applications

The 1TPH RO Water Treatment System is widely used in:

• Boiler Feed Water

• Steam Boiler Systems

• Food & Beverage Industry

• Pharmaceutical Manufacturing

• Electronics Industry

• Chemical Processing

• Hotels & Hospitals

• Drinking Water Production

• Industrial Manufacturing

• Laboratory Water Supply

Optional Configuration

According to different water quality requirements, the system can be equipped with:

• Water Softener

• UF System

• EDI Ultra Pure Water System

• UV Sterilizer

• Ozone Generator

• Mineral Water System

• CIP Cleaning System

• Remote PLC Monitoring

Why Choose Yufeng Water Treatment?

• More than 10 years of manufacturing experience

• OEM & ODM available

• CE compliant components

• Professional engineering support

• Customized solutions for different water sources

• Worldwide export experience

• Fast delivery and reliable after-sales service




Frequently Asked Questions (FAQ)

Q1: What is the capacity of this RO water treatment system?

A: The standard capacity is 1,000 liters per hour (1TPH). We also provide customized capacities ranging from 250LPH to 100T/H according to customer requirements.

Q2: What water sources can this system treat?

A: The system can treat various raw water sources, including:

• Tap water

• Well water

• Groundwater

• River water

• Lake water

• Municipal water

The final configuration depends on the raw water quality report.

Q3: Is this RO system suitable for boiler feed water?

A: Yes. It is specially designed for boiler feed water treatment. The system effectively removes dissolved salts, hardness, suspended solids, bacteria, and other impurities to reduce scaling and improve boiler efficiency.

Q4: What is the desalination rate?

A: The reverse osmosis system can achieve a desalination rate of up to 99%, depending on the raw water quality and membrane configuration.

Q5: What materials are available?

A: The equipment frame can be manufactured in:

• Carbon steel with anti-corrosion coating

• SUS304 stainless steel

• SUS316 stainless steel (optional)

The material can be customized according to your budget and application.

Q6: Does the system support automatic operation?

A: Yes. The system is equipped with an automatic PLC control system that supports automatic start/stop, pressure monitoring, water shortage protection, and fault alarms.

Q7: Can the voltage be customized?

A: Yes. We support customized voltages, including:

• 220V / 50Hz

• 380V / 50Hz

• 415V / 50Hz

• 440V / 60Hz

Other voltage standards are also available upon request.

Q8: What industries use this equipment?

A: This RO system is widely used in:

• Boiler feed water

• Food & Beverage

• Pharmaceutical

• Electronics

• Chemical industry

• Hotels

• Hospitals

• Schools

• Drinking water production

• Manufacturing plants

Q9: Can the system be customized?

A: Yes. We provide complete OEM and ODM services, including customized capacity, frame material, control system, pretreatment process, voltage, and installation layout.

Q10: What consumables need regular replacement?

A: Regular maintenance items include:

• PP filter cartridge

• Activated carbon

• Quartz sand

• RO membrane (typically 2–3 years, depending on water quality)

• Chemical cleaning agents

Routine maintenance helps extend the system's service life.

Q11: Do you provide installation support?

A: Yes. We provide installation manuals, wiring diagrams, operation videos, online technical support, and overseas engineer service when required.

Q12: How can I choose the right RO water treatment system?

A: Please provide the following information:

• Raw water source

• Required water capacity

• Water application

• Local voltage

• Raw water analysis report (if available)

Our engineers will recommend the most suitable solution for your project.
