Quartz Sand + Activated Carbon + Anti-Scale System + PP Filter + RO Membrane: Multi-Stage Purification, Fully Automatic Operation, Stable Permeate

1. Product Overview

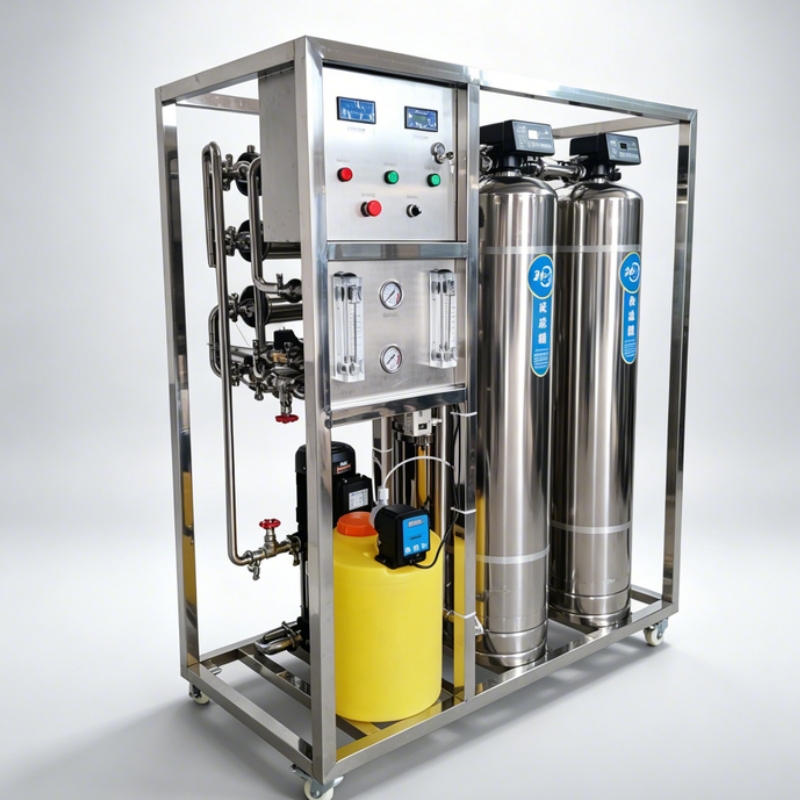

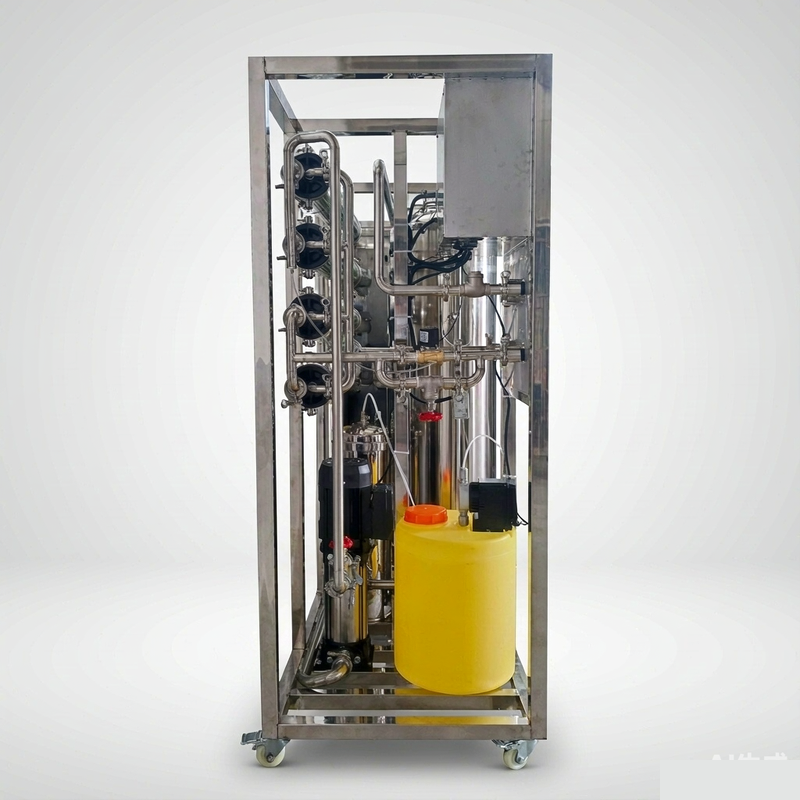

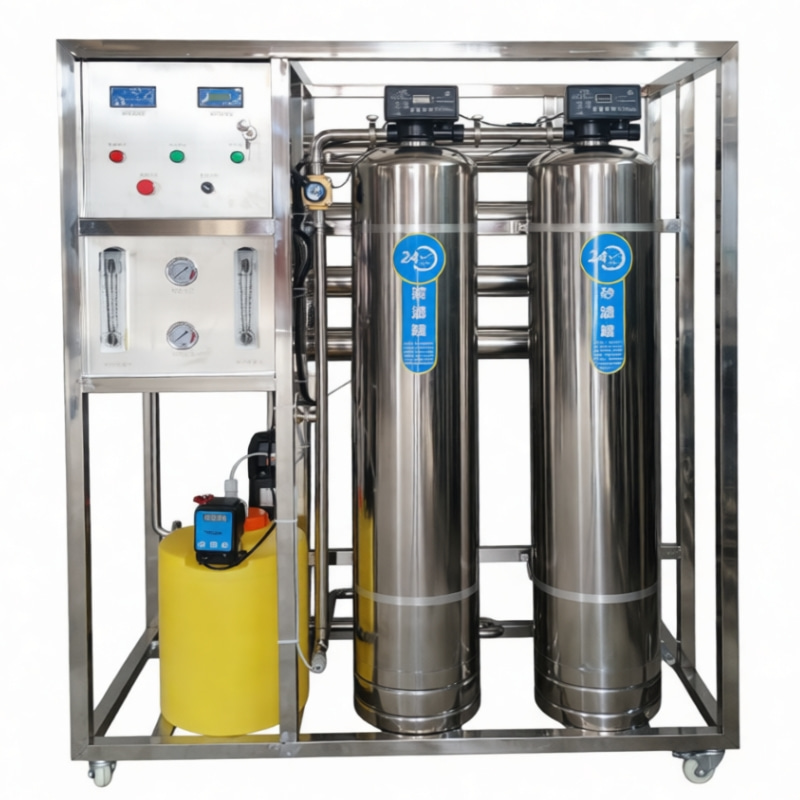

This 1 ton/hour (1 T/H) reverse osmosis pure water equipment is compatible with a wide range of water sources, including underground well water, piped water supply and municipal tap water. The complete unit is built in stainless steel and equipped with an anti-scale dosing system and a fully automatic electrical control system. It supports multiple voltages worldwide, making it a highly adaptable water filtration system.

The treatment process combines quartz sand filtration, activated carbon filtration, an anti-scale system, PP sediment filtration and RO membrane multi-stage purification. Permeate quality is stable and reliable: silt, hardness scale, residual chlorine and organic matter in the feed water are effectively removed, and permeate conductivity is 30 uS/cm or lower. The system meets the pure water requirements of circulating cooling water, boiler make-up water, steam generator feed water, food and beverage or catering water, and commercial drinking water.

2. Key Features

• Suitable for multiple water sources worldwide: underground well water, piped water supply and municipal tap water can all be treated, adaptable to different water quality conditions worldwide.
• Multi-stage purification, stable permeate: quartz sand, activated carbon, anti-scale system, PP filter and RO membrane in series; permeate conductivity of 30 uS/cm or lower with stable, reliable output.
• Anti-scale protection for the RO membrane: the built-in anti-scale system effectively prevents membrane scaling, extends RO membrane service life and reduces operating cost.
• Fully automatic control, multi-voltage: the automatic electrical control system runs the plant unattended, easy to operate with no dedicated operator required.
• Stainless steel construction, built to last: the whole unit is made of stainless steel, corrosion resistant, high strength and long service life.
• Flexible configuration, customized on demand: when feed water hardness is low the anti-scale system can be removed; when hardness is high it can be replaced by a resin softening system. Online conductivity or flow monitoring, UV sterilization and ozone disinfection are available as options.

3. Process Flow

Raw water - Raw water tank / booster pump - Quartz sand filter - Activated carbon filter - Anti-scale system - PP sediment filter - High-pressure pump - RO reverse osmosis membrane - Pure water tank - Point of use

Function of each process unit:

• Raw water tank / booster pump: stabilizes inlet pressure and flow rate to ensure continuous and stable operation.
• Quartz sand filter: removes silt, rust, suspended solids and other large particles.
• Activated carbon filter: adsorbs residual chlorine, off-color, odor and organic matter, protecting the downstream RO membrane.

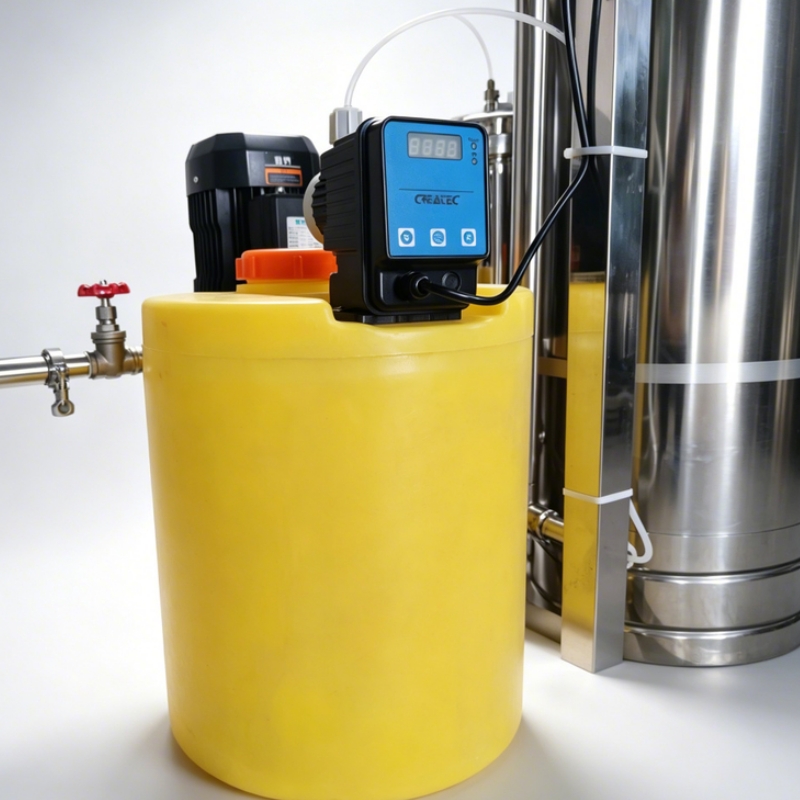

• Anti-scale system: doses antiscalant to prevent RO membrane scaling, protect membrane elements and extend service life.
• PP sediment filter + RO membrane: the PP filter traps fine particles, and the high-pressure pump drives water through the RO membrane, which rejects dissolved salts, heavy metals, bacteria and viruses to produce high-purity water.

4. Technical Specifications

1 T/H standard configuration for reference; customizable according to your water quality.

5. Optional Configurations

The configuration of this equipment is flexible. When feed water hardness is relatively low, the anti-scale system can be omitted; when hardness is high, the anti-scale system can be replaced by a resin softening system. Optional add-ons include online conductivity or flow meters, UV sterilization and ozone disinfection. For higher water quality requirements, two-stage reverse osmosis, EDI polishing or ultrafiltration systems are available.

6. Applications

Circulating cooling water - Boiler water - Steam generator water - Food and beverage, catering water - Commercial drinking water

7. Why Choose YUFENG

• 10+ years of manufacturing experience: mature process and reliable quality.
• 1,000+ delivered projects: proven in real operation.
• 24-hour after-sales response: timely service for worry-free operation.
• 1-on-1 free solution customization: one-stop service covering research and development, engineering design, equipment manufacturing, installation and commissioning, and after-sales service.

8. FAQ

Q: Which water sources are suitable for this reverse osmosis pure water equipment?
A: Common groundwater, piped water supply and municipal tap water are all suitable.

Q: Which water sources are not suitable?
A: Wastewater containing large amounts of impurities, or water with conductivity (TDS) above 1,000, is not suitable for this equipment.

Q: If my feed water is groundwater, how do I use this system?
A: Store the groundwater in the raw water tank first, then connect it to the feed pump inlet of the water treatment equipment.

Q: How much water can this system produce per day?
A: Under normal conditions, about 5 to 8 tons per day, depending on daily operating hours and feed water quality.

Q: What kind of pure water equipment should a food factory choose?
A: It depends on the specific water requirements. For lower requirements, a single-stage reverse osmosis system with UV disinfection; for higher requirements, a two-stage reverse osmosis system with UV disinfection.

Q: Which water treatment equipment is suitable for agriculture?
A: Soilless cultivation, hydroponics, seedling raising and high-value cash crops such as strawberry, blueberry and orchid require pure water equipment; most other planting scenarios do not need RO pure water equipment.

Q: Can this reverse osmosis equipment be used in aquaculture?
A: RO pure water equipment is needed for fish species that require the removal of salts and hardness from water (such as sutchi catfish, Pangasius). For common poultry and livestock farming, ultrafiltration equipment is generally used instead of RO.

9. Get a Solution

If you need this 1 ton/hour sand-carbon-resin reverse osmosis pure water equipment, or have higher requirements for capacity or water quality, please contact YUFENG Water Treatment. We will provide a free design solution and quotation based on your raw water quality and water demand.
