Installation of High-Purity Water Equipment for Groundwater Purification in High-Purity Sand Project

40 Ton Per Hour High Purity Water Treatment Equipment

2026-03-28 14:43 Chinese reverse osmosis water treatment equipment

QR code 8

40 TPH High-Purity Water Equipment Manufactured by Shandong Yufeng Water Treatment Equipment Co., Ltd. for High-Purity Sand Projects

This equipment features high efficiency and stable performance, intelligent operation, as well as convenient maintenance and management.

I. Equipment Structure and Functions

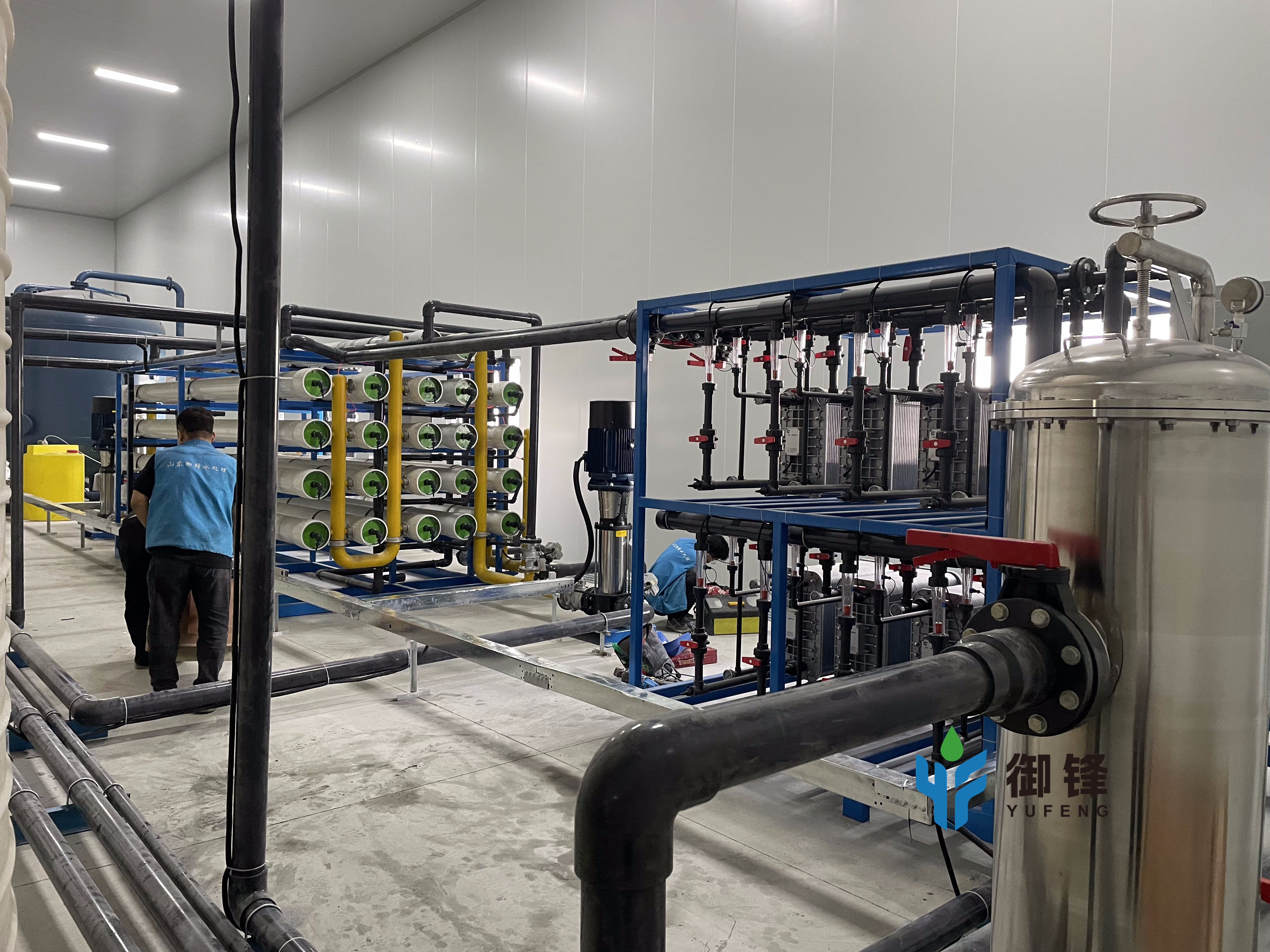

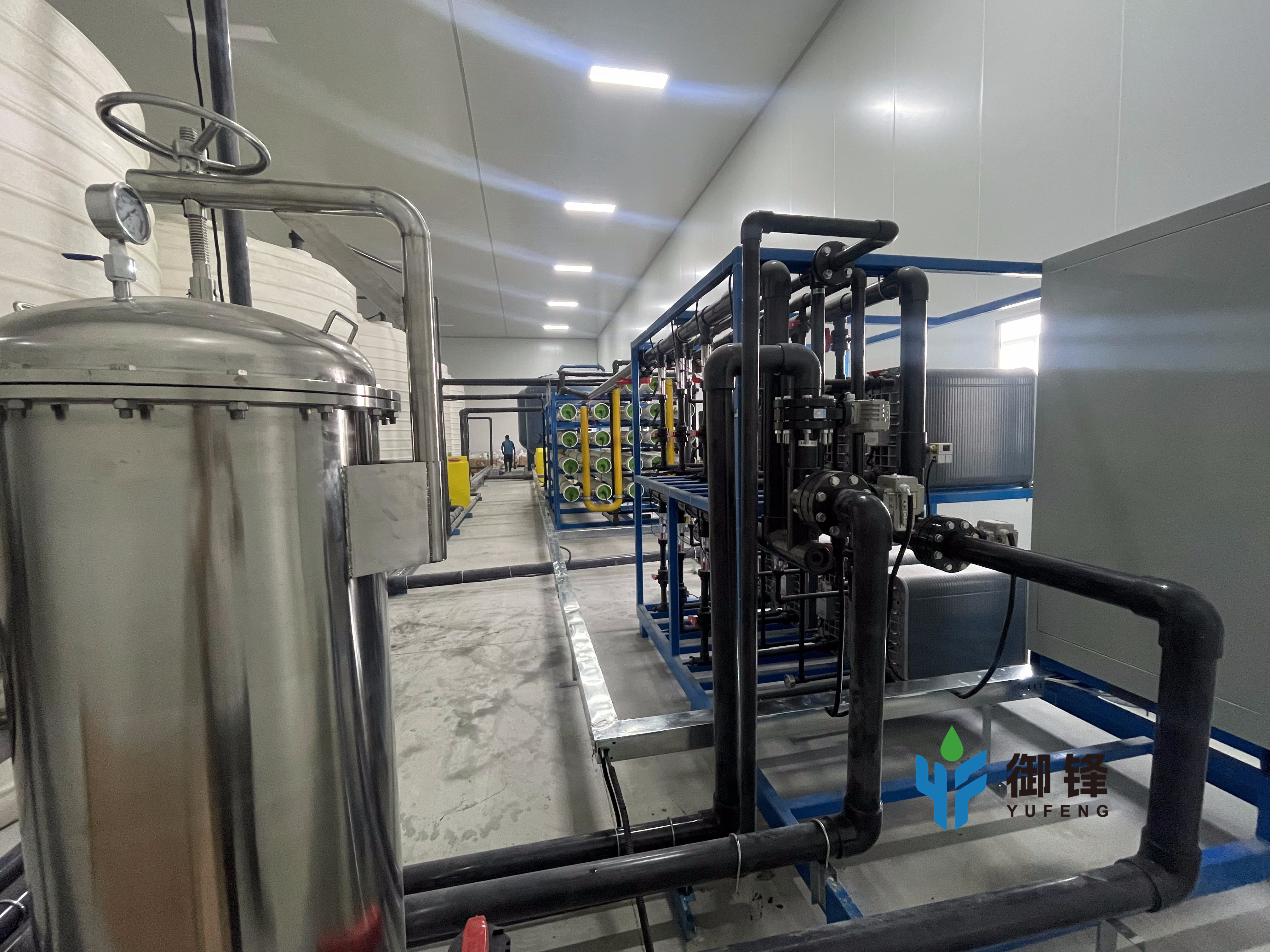

This set of water treatment equipment adopts an advanced modular design, with a scientific, reasonable, compact and efficient process from raw water input to high-purity water output. It is mainly composed of a raw water tank, raw water pump, multi-media filter, activated carbon filter, automatic dosing system, cartridge filter, primary and secondary RO membrane systems, caustic dosing device, EDI unit and water supply system.

The raw water tank is used to store raw water to be treated, while the raw water pump delivers the raw water to the multi-media filter to remove large-particle impurities in the water. The water then passes through the activated carbon filter to further remove organic matter and residual chlorine. The automatic dosing system automatically adds an appropriate amount of chemicals according to water quality conditions to optimize the subsequent treatment effect.

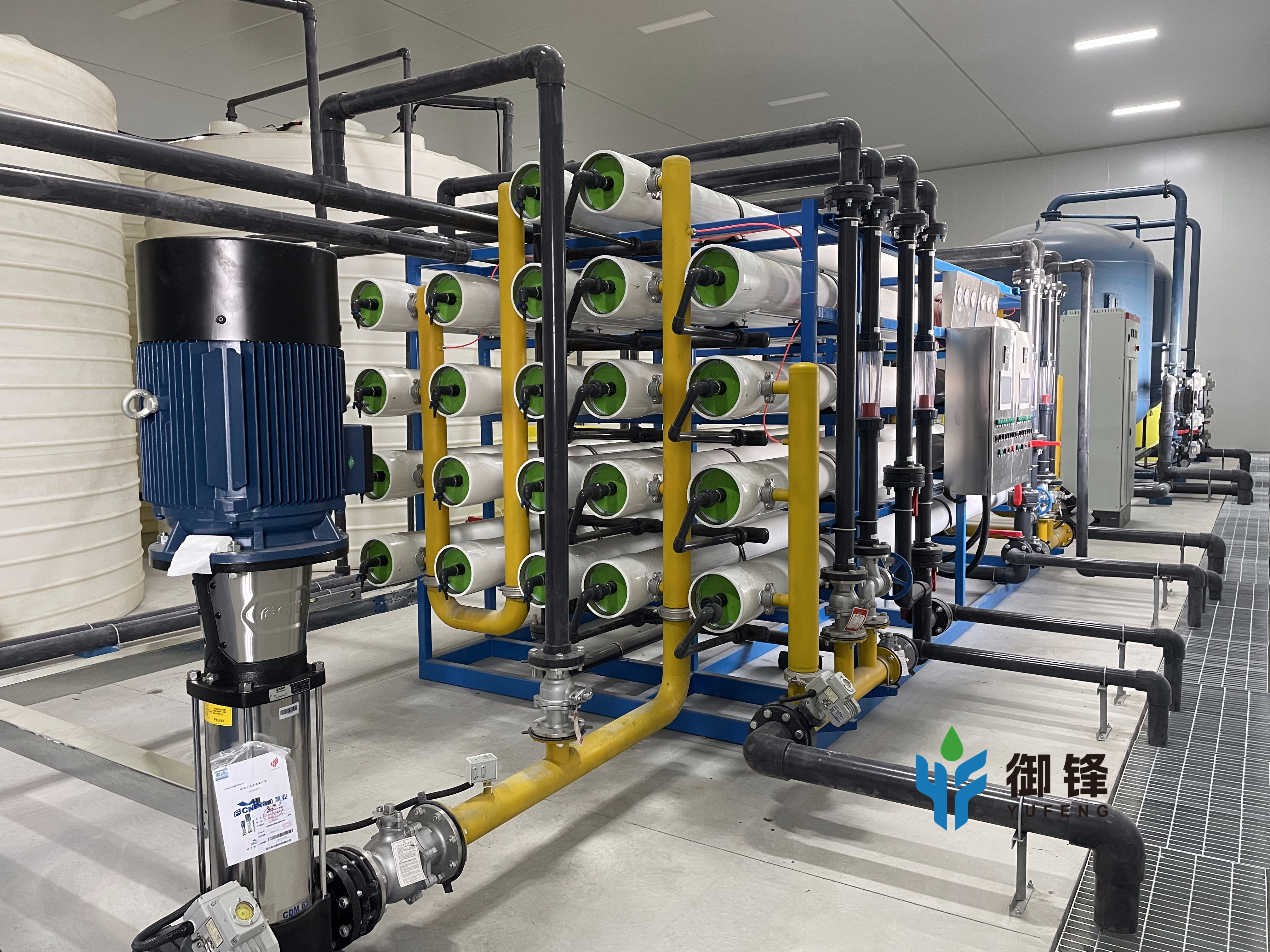

After the above pretreatment, the water enters the cartridge filter to remove fine particles and suspended solids, creating favorable conditions for the subsequent reverse osmosis treatment. The primary high-pressure pump pressurizes the water into the primary RO membrane system, which removes most dissolved salts and other impurities through reverse osmosis. The caustic dosing device regulates the pH value at this stage to ensure the stable operation of the RO membranes.

The water treated by the primary RO membrane system flows into the primary water tank, is pressurized by the primary tank booster pump, and then enters the secondary high-pressure pump before passing through the secondary RO membrane system for deep desalination to produce water of higher purity. The secondary water tank stores the water treated by the secondary RO membrane system, preparing it for the subsequent EDI treatment.

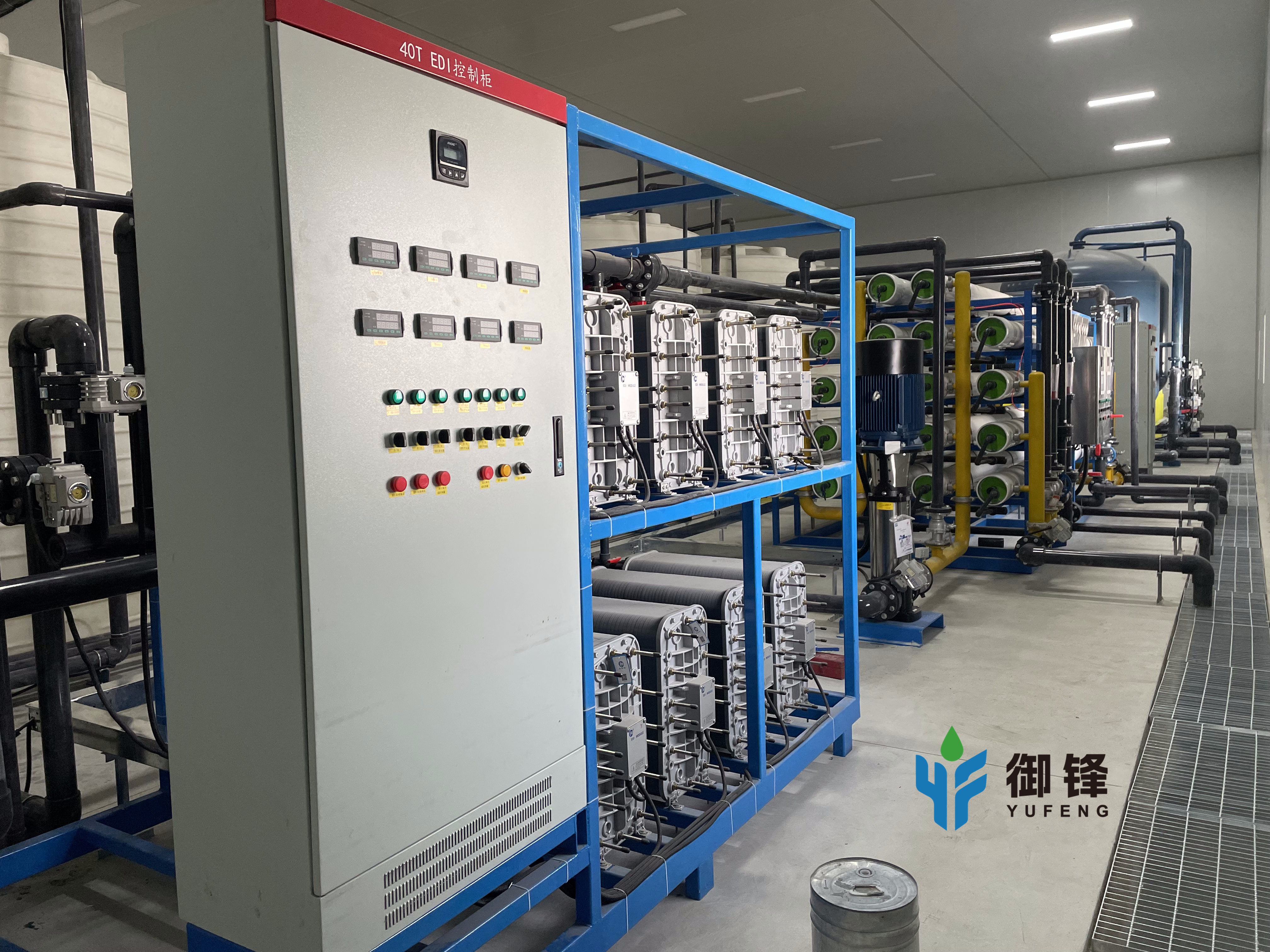

The EDI unit is the key component for producing high-purity water, which further removes ions in the water through electrodialysis technology to achieve ultra-high water purity. Finally, the water treated by the EDI unit enters the purified water tank and is delivered to each water consumption point through the water supply system.

II. Application Advantages in High-Purity Sand Production

This water treatment equipment demonstrates remarkable application advantages in the field of high-purity sand production. Firstly, with a high-purity water production capacity of 40 tons per hour, it meets the large demand for high-purity water in high-purity sand production. Secondly, the equipment adopts a two-stage RO membrane system and EDI technology, ensuring the stability and high purity of the effluent quality, which provides a strong guarantee for the production of high-quality high-purity sand. In addition, the intelligent control system of the equipment can monitor water quality changes in real time and automatically adjust treatment parameters, ensuring the continuity and stability of the production process.

III. Performance Parameters, Operation and Maintenance

This water treatment equipment delivers excellent performance parameters, featuring high desalination efficiency, low energy consumption and long service life. Meanwhile, it adopts an intelligent operation mode: users can realize equipment start-stop, parameter setting and status monitoring only through the touch screen or remote control system, greatly improving operation convenience. Furthermore, the modular design of the equipment simplifies maintenance, as all components can be replaced independently, reducing both maintenance costs and time costs.
