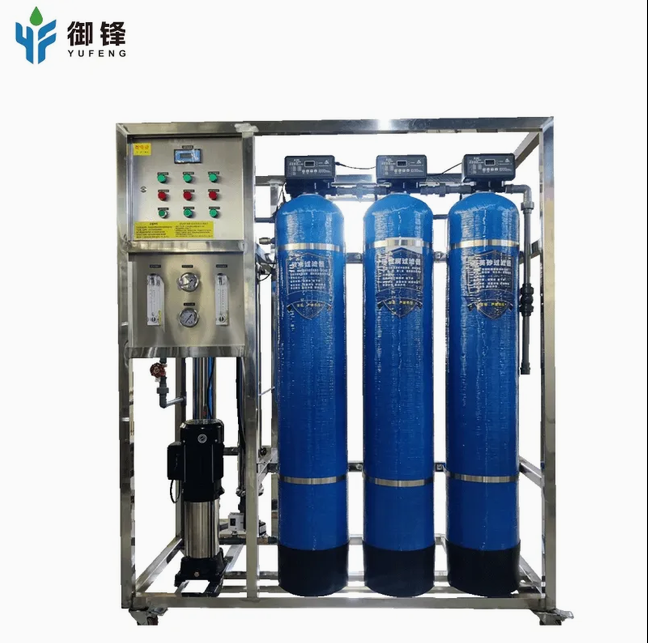

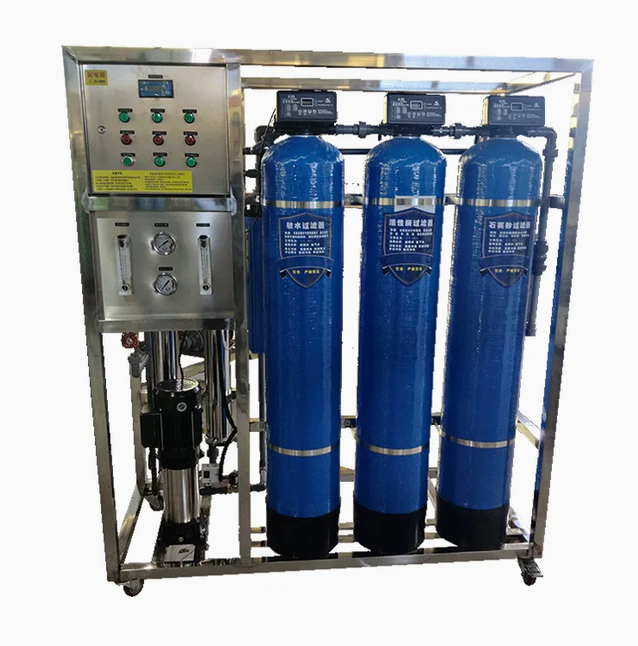

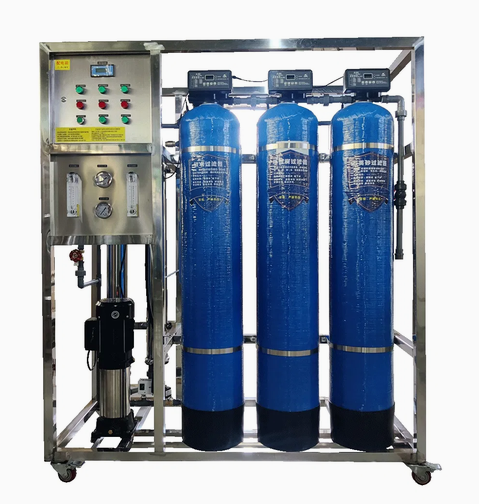

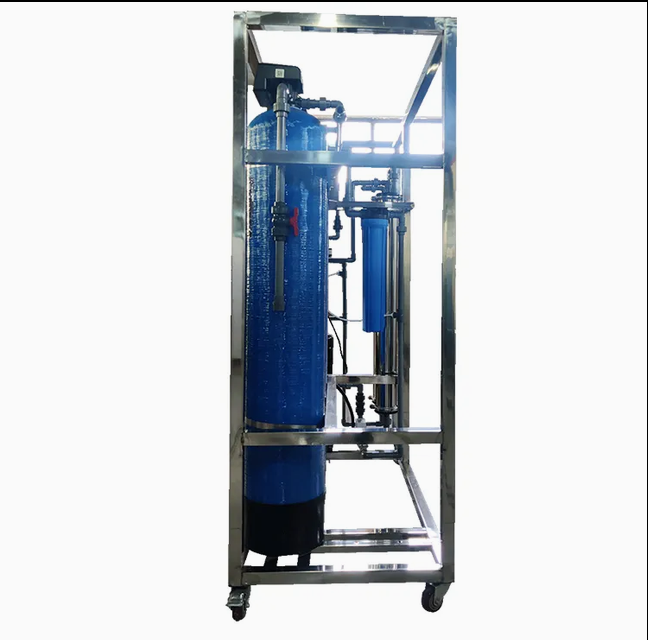

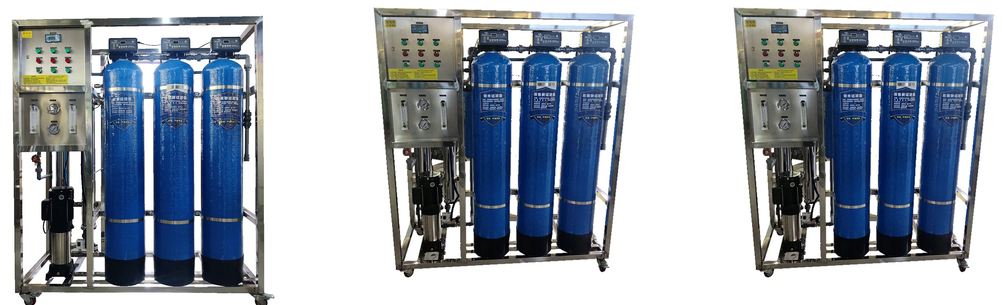

Yufeng's industrial reverse osmosis (RO) water treatment system combines automatic water-softening pretreatment with high-efficiency RO purification in one fully automated skid. Engineered for complex feed water worldwide, it reliably removes sand, suspended solids, residual chlorine, organics, calcium & magnesium ions and dissolved salts—delivering stable, high-purity water for demanding industrial processes.
Overview
This industrial RO water treatment plant is a complete, automatic water purification system that integrates softening and reverse-osmosis purification. It is suitable for a wide range of raw-water qualities across global markets and effectively reduces sediment, suspended matter, free chlorine, organic compounds, hardness (Ca²⁺/Mg²⁺) and total dissolved solids (TDS), producing consistently high-quality pure water.
It handles both groundwater and municipal tap water, and is built to lower membrane fouling, extend RO membrane service life and improve the overall stability of the unit—while keeping operating costs low.
How It Works — Multi-Stage Purification
The system uses a five-stage process to protect the RO membrane and maximize output quality:
| Stage | Process | What it removes |
|---|---|---|
| 1 | Quartz sand filtration | Suspended solids, turbidity, sediment and particulates |
| 2 | Activated carbon filtration | Residual chlorine, organics, odor and color |
| 3 | Ion-exchange softening (resin) | Hardness ions Ca²⁺ and Mg²⁺ that scale the RO membrane |
| 4 | Precision / security filtration (5 µm) | Fine particulate before the membrane |
| 5 | RO membrane separation | Dissolved salts, bacteria and >99% of TDS |
The PLC controller automates operation and automatic membrane flushing, simplifying maintenance and reducing labor cost.
Key Advantages
- Fully automatic PLC control — one-touch start, easy daily operation.
- Integrated softening + RO design — compact footprint, simplified workflow.
- Desalination rate ≥ 99% — consistently high-purity output.
- Multi-stage pre-treatment — protects the RO membrane and extends its service life.
- Stainless steel (SS304) frame — rugged, corrosion-resistant and durable.
- Low operating cost — simple maintenance with automatic flush cycles.
Customization & Capacity
Yufeng tailors each system to the customer's local water quality, required flow and industry application:
| Parameter | Yufeng capability |
|---|---|
| Capacity | 0.25 T/H – 100 T/H (tons/hour = m³/h) |
| Voltage | Designed for local supply: 220V / 380V / 415V, 50/60Hz |
| Product range | RO, water softener, ultrafiltration (UF), ultra-pure (EDI) and wastewater treatment systems |
| Service | OEM / ODM custom production and private labeling |
| Engineering | Scheme designed to local water quality, voltage and installation environment |
Applications
The industrial RO system serves a broad range of sectors:
| Industry | Typical use |
|---|---|
| Beverage & bottling | Barreled, bagged and PET-bottled drinking water |
| Boiler & power | Boiler feed water, steam generation |
| Food & pharmaceutical | Process water, CIP, ingredient water |
| Electronics & labs | Ultra-pure and experimental water |
| Hospitality & education | Hotels, schools, public facilities |
| General industry | Manufacturing, chemical and workshop water |
Why Choose Yufeng
Shandong Yufeng Water Treatment Equipment Co., Ltd. is based in Linyi, Shandong, China, with extensive manufacturing experience in industrial water treatment. We supply direct from the factory, engineer each project to the client's site conditions, and support global customers with OEM/ODM production and overseas shipping.
Explore related solutions: Industrial Water Softener, Ultrafiltration System, Ultra-Pure EDI System, Wastewater Treatment.
Frequently Asked Questions
What is an industrial reverse osmosis water treatment system?
It is an automated skid that forces feed water through a semipermeable RO membrane to remove dissolved salts, bacteria and impurities, producing high-purity water. Yufeng adds an integrated softening pretreatment stage to protect the membrane.
What is the difference between water softening and reverse osmosis?
Softening removes hardness (calcium and magnesium) via ion exchange; reverse osmosis removes dissolved salts and nearly all impurities via a membrane. Combining both protects the RO membrane and improves final water quality.
What capacity can Yufeng customize?
From 0.25 T/H up to 100 T/H, single- or multi-pass, engineered to your feed-water analysis, flow demand and local voltage.
Do you provide OEM/ODM and local voltage compatibility?
Yes. We design for local voltage (220V/380V/415V, 50/60Hz) and offer OEM/ODM branding and private-label production.
How long does an RO membrane last?
With proper multi-stage pre-treatment like Yufeng's design, an RO membrane typically lasts 2–3 years.
